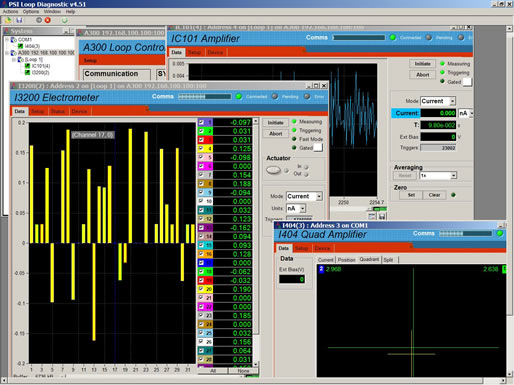

PSI Diagnostic Software

Provides support for all Pyramid G1 products.

Installer: PSI Diagnostic Setup (version 4.151)

PSI Diag



PTC DiagnosticG2 Software

Provides support for all Pyramid G2 products, plus selected G1 products.

Installer: PTC Diagnostic Setup (prior version 5.15.0)

Installer: PTC Diagnostic Setup (current version 5.18.6)

Installer: PTC Diagnostic Setup (beta version 5.19.4_build238.msi)



IG2 Connection Layer Software

Provides EPICS connectivity for Pyramid products and other devices using Channel Access Server.

Version 2.4.2.

Files & manual IG2 Package (2.4.2)

Version 2.5.1. (beta version)

Files & manual IG2 Package (2.5.1)

Device firmware

Embedded code for Pyramid devices.

C400 0.7.27.86 -
F100 PIC 4.1K FPGA 6.2.27
F460 0.6.25.21 -
H20 PIC 4.0H FPGA 16.0.24
I128 0.7.167.69 -
I200 PIC 4.0E FPGA 9.1.12
I400r4: PIC 4.0F FPGA 1.5.06
I404 PIC 4.1Q FPGA 14.0.22
IC101 PIC 4.0M FPGA 15.0.08
I3200 PIC 4.0J FPGA 15.3.23
M10 PIC 4.1D FPGA 8.1.42
M10C PIC 4.1D FPGA 8.1.44
M10P PIC 4.0D FPGA 8.1.26 (.pof)
M40 PIC 4.0G FPGA 2.0.21
N2400 PIC 4.0A FPGA
A360 0.6.38.15 -
A500 Sharc 5.57 FPGA 2.7.52
A560 0.6.167.44 -

These are the latest release code versions. If you working with a large system, check the relevant software compatibility matrix before using them. You may need a custom version or an earlier version.

Contacts for support :

Email: support@ptcusa.com
Tel: +44 1273 492001 (UK)
